GENERATOREN

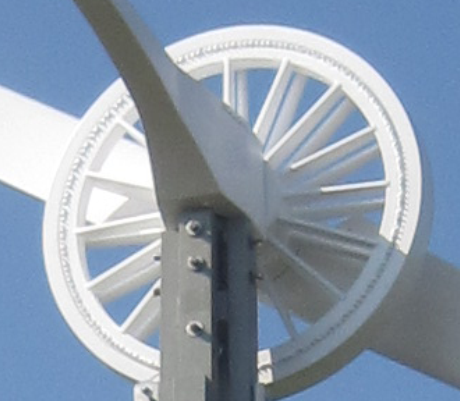

RINGGENERATOREN
sind hochpolige Generatoren.
bieten eine hohe Effizienz bei niedrigen Drehzahlen.
Permanentmagneterregte Synchronringgeneratoren (Innenläufer):
typ |
dimension D x L [mm] |
shaft diameter [mm] |
weight [kg] |
speed [rpm] |
electrical power [W] |
voltage [Vac] |
starting torque [Nm] |
efficiency [%] |
PMSG-RGI-400-8k/200 | 400 x 220 | - | 58 | 200 | 8000 | 430 | <4 | 85 |
PMSG-RGI-500-9k5/150 | 500 x 225 | - | 73 | 150 | 9500 | 430 | <7,8 | 84 |
PMSG-RGI-800-15k/80 | 800 x 235 | - | 138 | 80 | 15000 | 430 | <22 | 82 |
Permanentmagneterregte Synchronringgeneratoren (Außenläufer):
typ |
dimension D x L [mm] |
shaft diameter [mm] |
weight [kg] |
speed [rpm] |
electrical power [W] |
voltage [Vac] |
starting torque [Nm] |
efficiency [%] |
PMSRG-OR-600-3k/188 | 600 x 100 | - | 34 | 188 | 3000 | 450 | <0,2 | 93 |
PMSRG-OR-800-3k/140 | 800 x 100 | - | 46 | 140 | 3000 | 450 | <0,2 | 92 |
PMSRG-OR-1100-3k/102 | 1100 x 100 | - | 62 | 102 | 3000 | 450 | <0,2 | 91 |
PMSRG-OR-1400-3k/80 | 1400 x 100 | - | 79 | 80 | 3000 | 450 | <0,2 | 91 |
Kontaktieren Sie uns für Ihren Anwendungsfall!
